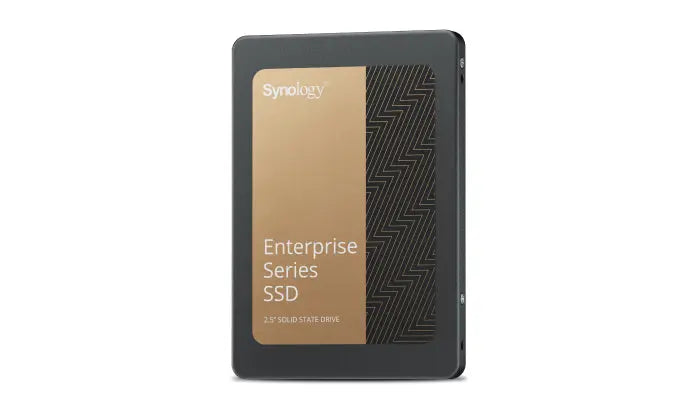

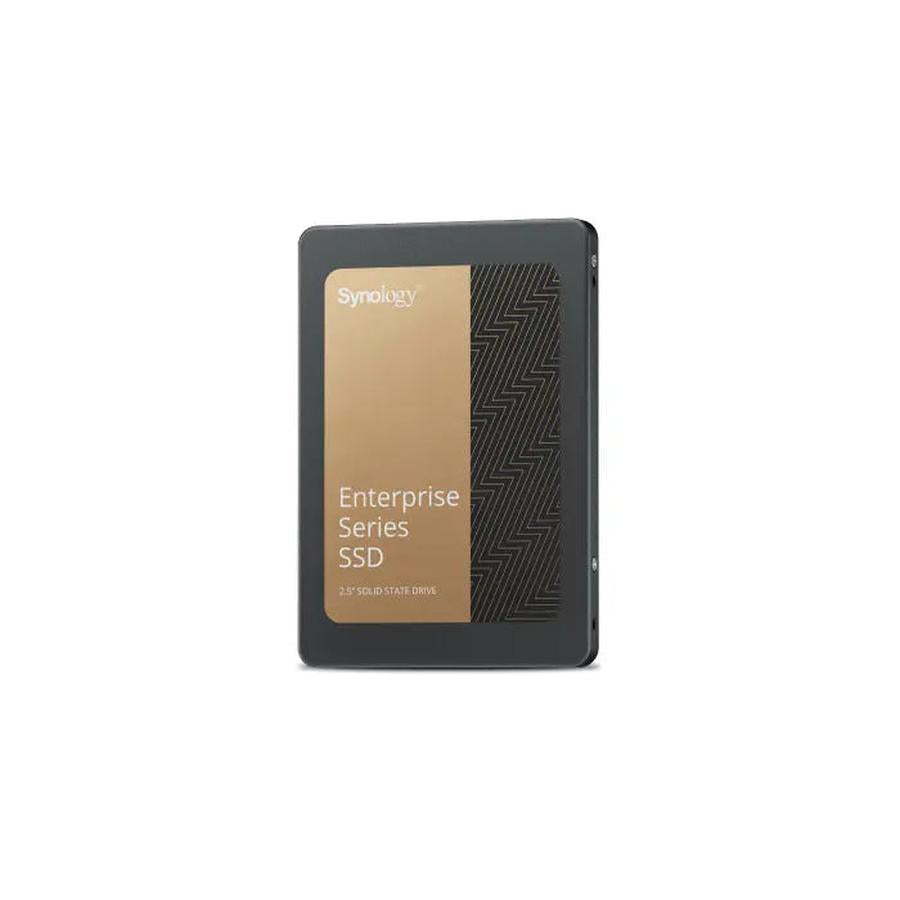

Synology SAT5200 960 GB 2.5" Serial ATA III SATA SSD

Synology SAT5200 960 GB 2.5" Serial ATA III SATA SSD

SKU:SAT5220-960G

Regular price £290.00
Regular price Sale price £290.00
Sale Sold out
Taxes included.
Quantity

Synology SAT5200 960 GB 2.5" Serial ATA III SATA SSD

Synology SAT5200 960 GB SATA SSD offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Stable high performance for demanding environments
Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.

Enterprise-grade endurance and reliability
11,460 TBW

Synology SAT5200 960 GB SATA SSD  Built to withstand 24/7 intensive workloads with endurance up to 11,460 TBW.

End-to-end data protection
Data integrity and consistency are safeguarded over the entire data transfer path.

Power loss protection circuit design
Synology SAT5200 960 GB has dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.

Better analytics
Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.

Timely notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Synology SAT5200 960 GB
Optimal use
Easy monitoring allows you to make optimal use of each SSD.

One-click firmware upgrades
Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.

Purpose-built for Synology systems
Synology SAT5200 960 GB SATA SSD are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed.Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.


Specifications

Hard drive
SSD capacity 960 GB
Data transmission
Random write (4KB) 67000 IOPS
Random read (4KB) 98000 IOPS
Endurance
Mean time between failures (MTBF) 1500000 h
Features
Interface Serial ATA III
Component for NAS
NVMe No
Sequential read speed (ATTO) 530 MB/s
Sequential write speed (ATTO) 500 MB/s
TBW rating 11460
SSD capacity 960 GB
Random write (4KB) 67000 IOPS
Random read (4KB) 98000 IOPS
Mean time between failures (MTBF) 1500000 h
Hardware encryption No
Certification EAC BSMI VCCI RCM KC
SSD form factor 2.5"
Power
Power consumption (write) 2.8 W
Power consumption (read) 2.7 W
Power consumption (idle) 1.4 W
Operating voltage 5 V
Certificates
Certification EAC BSMI VCCI RCM KC
Performance
Interface Serial ATA III
Component for NAS
NVMe No
Sequential read speed (ATTO) 530 MB/s
Sequential write speed (ATTO) 500 MB/s
TBW rating 11460
SSD capacity 960 GB
Random write (4KB) 67000 IOPS
Random read (4KB) 98000 IOPS
Mean time between failures (MTBF) 1500000 h
Hardware encryption No
Design
Component for NAS
Certification EAC BSMI VCCI RCM KC
SSD form factor 2.5"
Weight & dimensions
Width 69.8 mm
Height 7 mm
Depth 100 mm
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Technical details
Interface Serial ATA III
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Hardware encryption No
SSD form factor 2.5"
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Other features
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
